50 million scientific research level CMOS, serial one-time imaging, best choice for EL full inspection

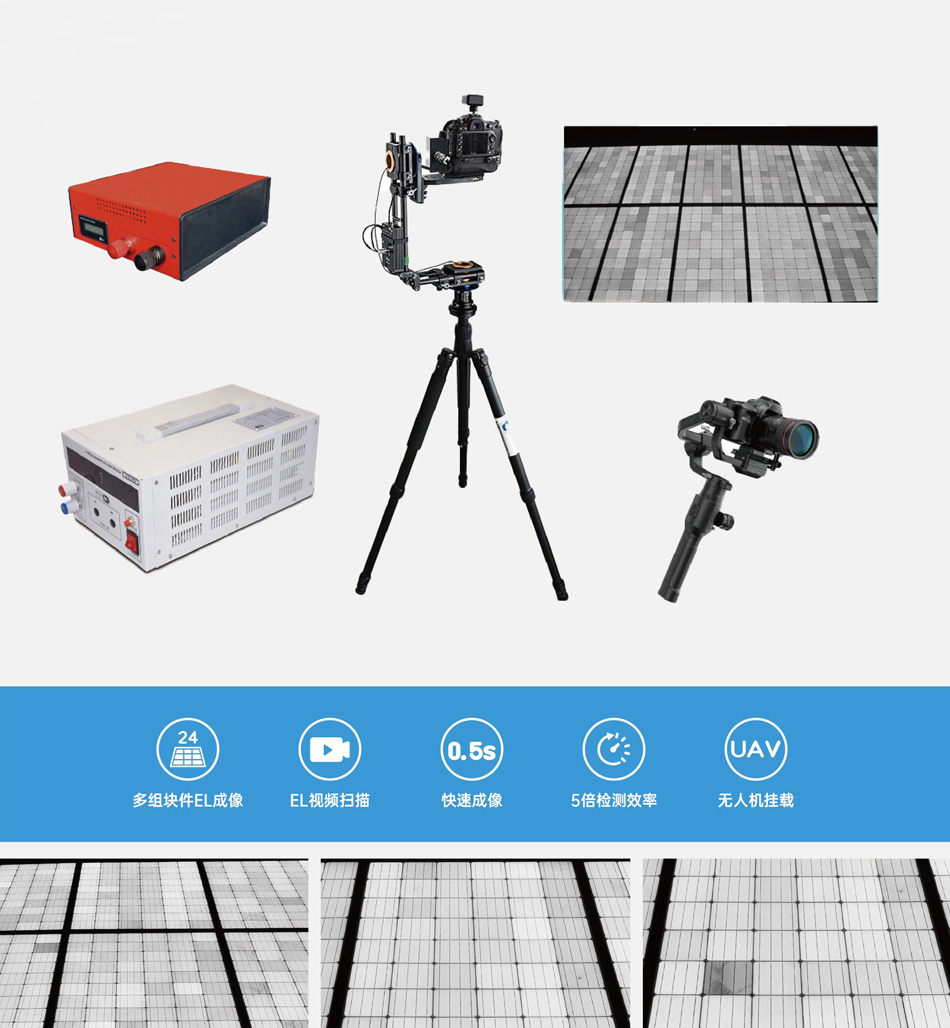

The string type EL tester is applied to the detection of hidden cracks in multiple components of outdoor photovoltaic power stations, suitable for full inspection of photovoltaic power stations and EL detection of rooftop mountain power stations. It has advantages such as high precision, high specifications, and high efficiency. The string type EL tester is equipped with the latest LAILX1OS infrared chip, which has weak current and high sensitivity infrared resolution ability. It can support imaging in a maximum range of 8200 x 5500mm.
| Product type | High configuration type |
| PX-SEL112 | |
| Performance index | |
| Detector type | Antimony doped uncooled infrared focal plane detector |
| Resolving power | 8200x5500 |
| Infrared pixels | 50 million |
| Infrared lens | D30M |
| Imaging accuracy | 0.1mm/pixel |
| EL video scanning | 1080(4K) |
| Focusing method | Full time dim light plane focusing |
| Detecting component types | Monocrystalline silicon, polycrystalline silicon, CIGS, double glass, perovskite, thin film, irregular components, non-standard batteries |
| Detect defect types | Hidden cracks, fragments, fragments, broken grids, black cores, black edges, edge scratches, sintering, contamination, hot spots, PID, attenuation, mixed gear components, back panel scratches, adhesive tape, etc |
| EL crack imaging | 24 component synchronous imaging |
| Wi Fi controller and APP software | |
| Operation method | Wireless operation of EL host, EL power supply, and E-Feng series power supply in the Internet of Things, and synchronous completion of system control |
| WI-Fl frequency | 5GHz Commercial Edition |
| Transmission distance | 500 meters |
| Original image transmission speed | 1~3s(5OMB/S) |
| Image size | The APP software can adjust the image quality and size |
| Pictures saving | APP cloud software |
| Barcode entry function | Manual input/Camera scanning input/Barcode gun input |
| Identification and detection function | Manual marking/AI marking/power control/camera control/power plant modeling/image capture | data cloud upload |
| Project management functions | Power plant modeling, EL defect elimination map, power plant project management |
| Power plant diagnostic report | AI batch recognition diagnostic images, EL detection report/EL positioning report automatically generated and exported |
| Intelligent programmable power supply | |
| Electric energy parameters | 1500VI10A |
| Accuracy | 士0.1% |
| Output power | 15KW |
| Input power | AC380 |
| Program control panel | Automatic power on, timed power off, circuit breaker protection, reverse current impedance setting |
| Grade | Import and export AAAAA level |
