Intelligent cleaning of photovoltaic power stations

Handheld cleaning machine

未标题-1


Performance characteristics:

1. Smooth operation of the cleaning machine head: With a hidden motor drive design, it has a small volume and a stable center of gravity, and there is no jumping or resonance during cleaning. The brushless motor is durable and long-lasting.

2. Modular design: The handle, battery pack, extension rod, and head can be independently disassembled and installed, making it convenient for packaging, transportation, and product function expansion.

3. Night vision lighting: The product has a night vision outline light, which is convenient for cleaning operations at night.

4. Cleaning machine head escape function: In case of accidental operation and the machine head rushing out of the boundary, the escape button can be used to return to the cleaning plane.

5. Lightweight design: The product weighs only 8kg, making it easy to operate. If necessary, the battery pack can be placed in the power backpack for a more ideal operating feel.

6. Heavy pollution with water cleaning: The product is paired with neutral cleaning agents to clean heavily polluted environments with water, achieving ideal results in cleaning oil and stubborn stains.

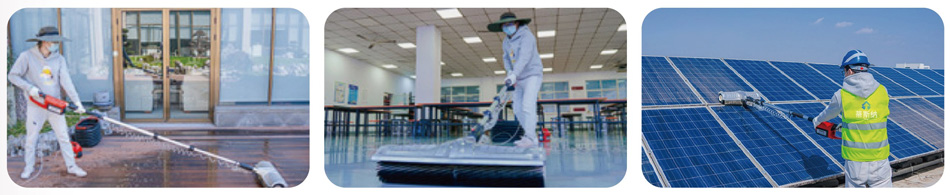

Application area:

第7页-7


Technical parameter:

Product weight8kg
Working modeElectric roller brush (dry/wet dual-purpose)
Voltage level25.2V
Cleaning width570mm
Usage environmentCleaning of photovoltaic modules and oily floors
Motor power120w
Product size2250*580*180mm
Battery typelithium battery
Product configuration selectionStandard versionHigh end version

Handheld cleaning machine body
Battery pack25.2v-9600mAh25.2v-9600mAh
Battery life3.5h3.5h
Charger110~250V Compatible with European and Japanese standards110~250V Compatible with European and Japanese standards
Power backpackLightweight homeworkLightweight homework
Portable shoulder bagConvenient device portabilityConvenient device portability
DC water pump
90w
Water pump power supply
Universal handheld cleaning machine
Standard lifting length3.5m3.5m
Extension rod
Single section 1.3m, can be combined with multiple sections
