A specialized solar panel module power testing equipment that can accurately test the IV curve, open circuit voltage, maximum power, maximum power point voltage, maximum power point current, irradiance, temperature, and fill factor parameters of photovoltaic arrays and modules under outdoor conditions. The rapid detection and anti bias function make it a more accurate IV testing model.
Performance characteristics：
1. The scanning speed is fast (10-100ms), ensuring that the test is minimally affected by light and shadows.
2. Easy to operate, testing can be completed in just 5 seconds with a 35 second interval for continuous monitoring.
3. The precise anti bias function enhances the accuracy of the shaft current test data.
4. Up to 400 IV curve data points for more accurate testing and analysis.
5. Standardized WRR silicon-based irradiance meter.
6. All PX-PIV115 parts can be integrated and placed inside the host.

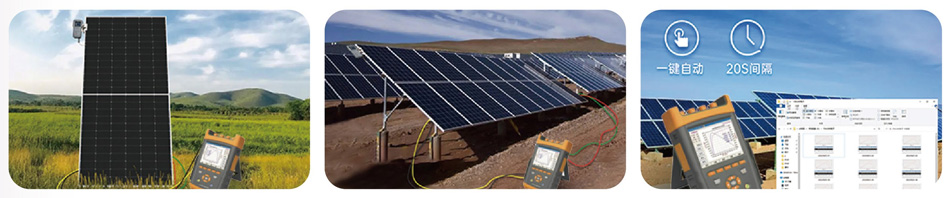

Application area：
Technical parameter：
| Product type | PX-PIV115 |
| Performance index | |
| Voltage range | 1500V |
| Voltage testing accuracy | 0.1V |
| Accuracy of voltage testing | 10.5% output 0.2V |
| Current range | 0~20A |
| Current testing accuracy | 0.001A |
| Accuracy of current testing | ±0.5%±0.02A |
| Maximum power test repeatability | ±0.5%±3W |
| Maximum power testing range | ~1KW |
| Maximum power accuracy when converting to STC | Better than ±3% ±3W |
| Irradiance communication | Bluetooth or serial port |
| Range of irradiance measurement | ~180oW/m² |
| Accuracy of irradiance testing | Better than ±3% |
| Range of environmental temperature testing | -30°℃~100℃ |
| PV battery temperature testing range | -30°C~100℃ |
| Language | Chinese/English |
| Power supply | AC/DC adapter (built-in lithium battery in the device) |
